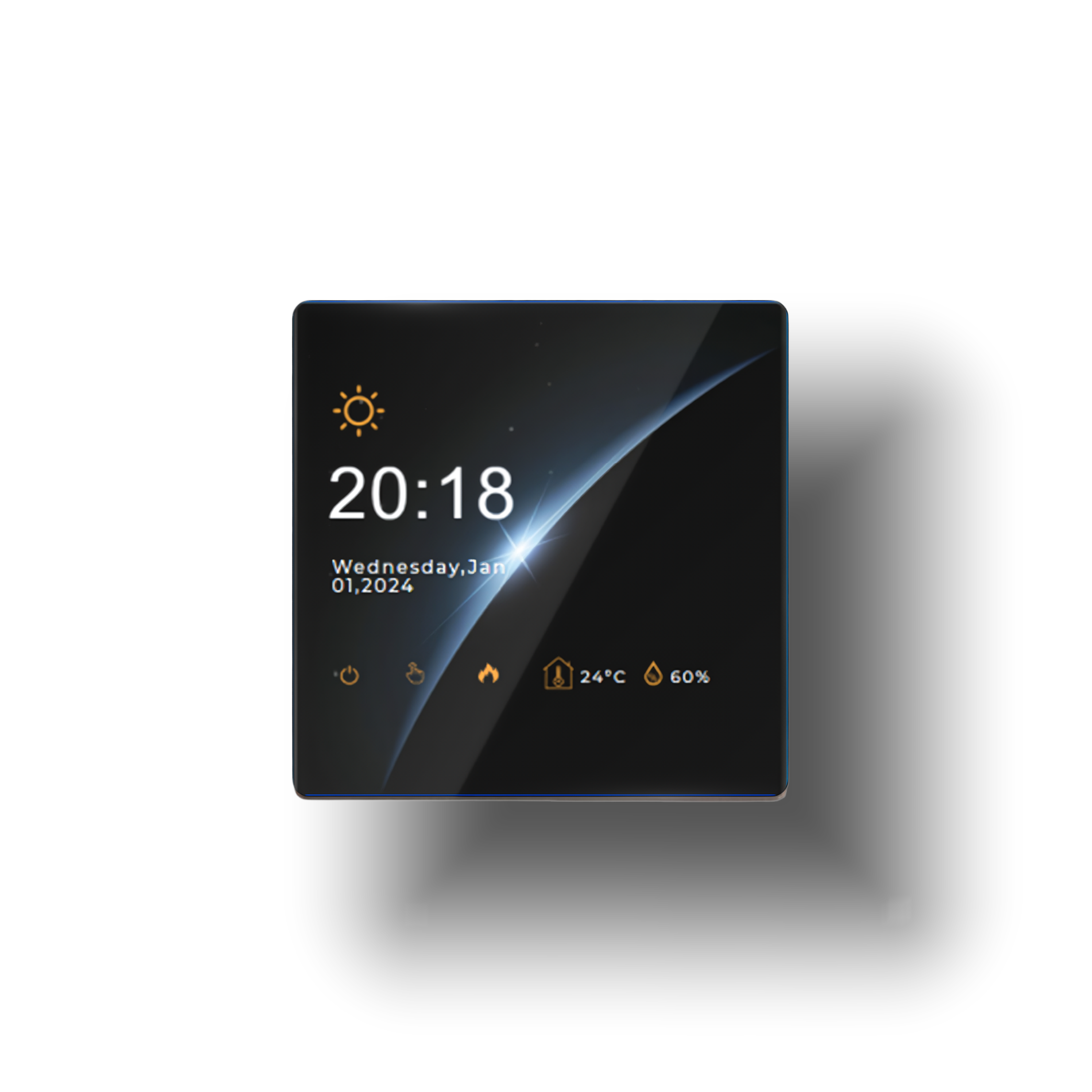

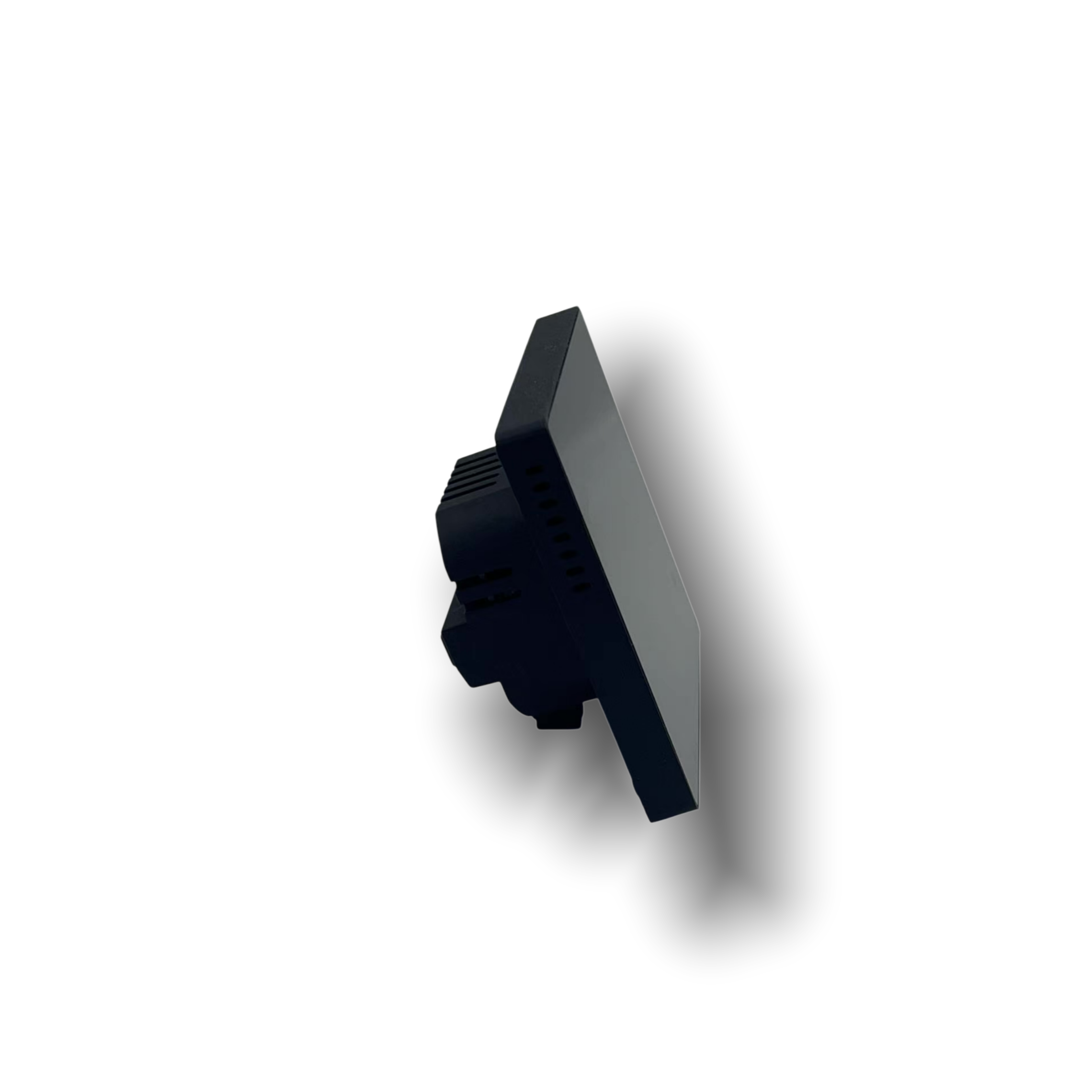

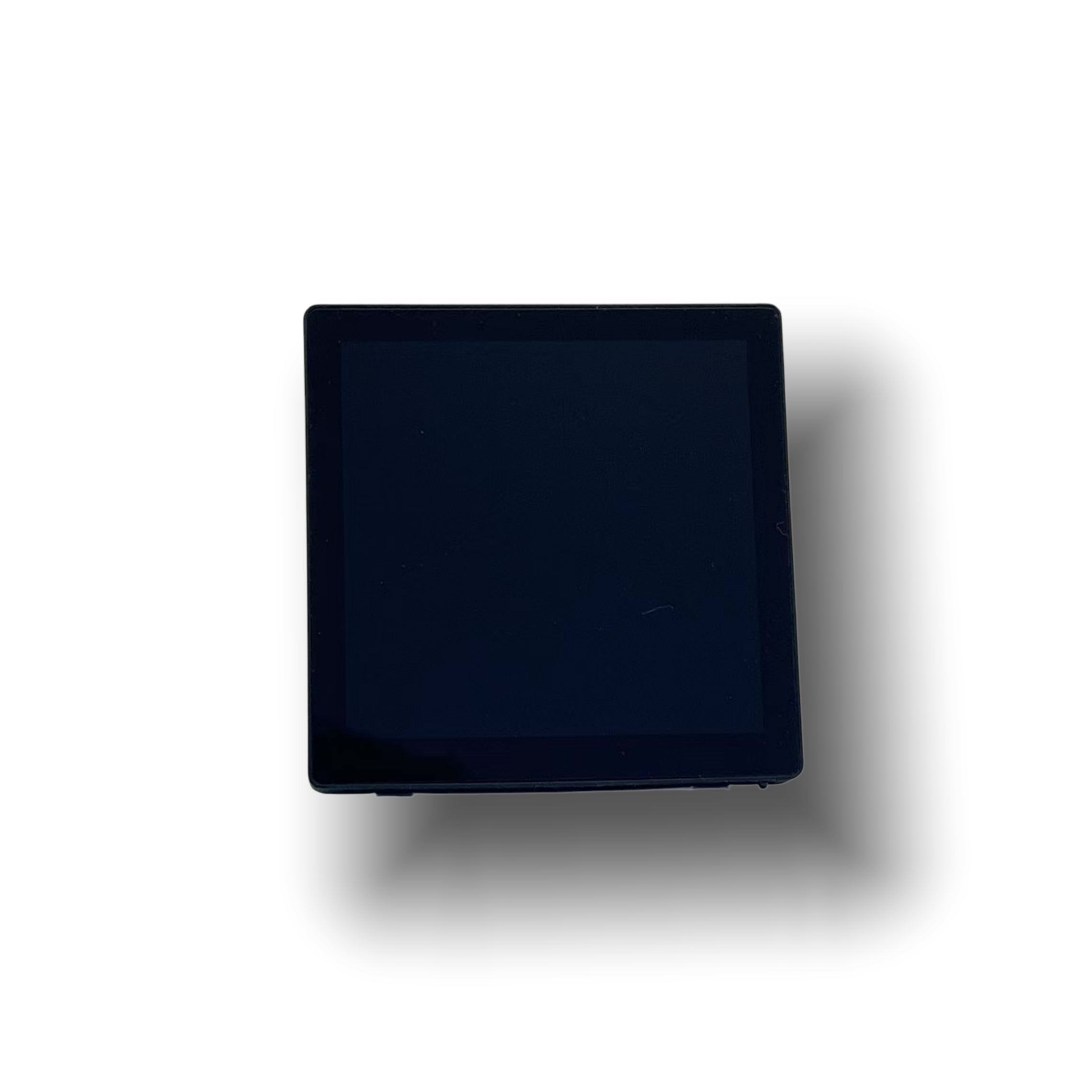

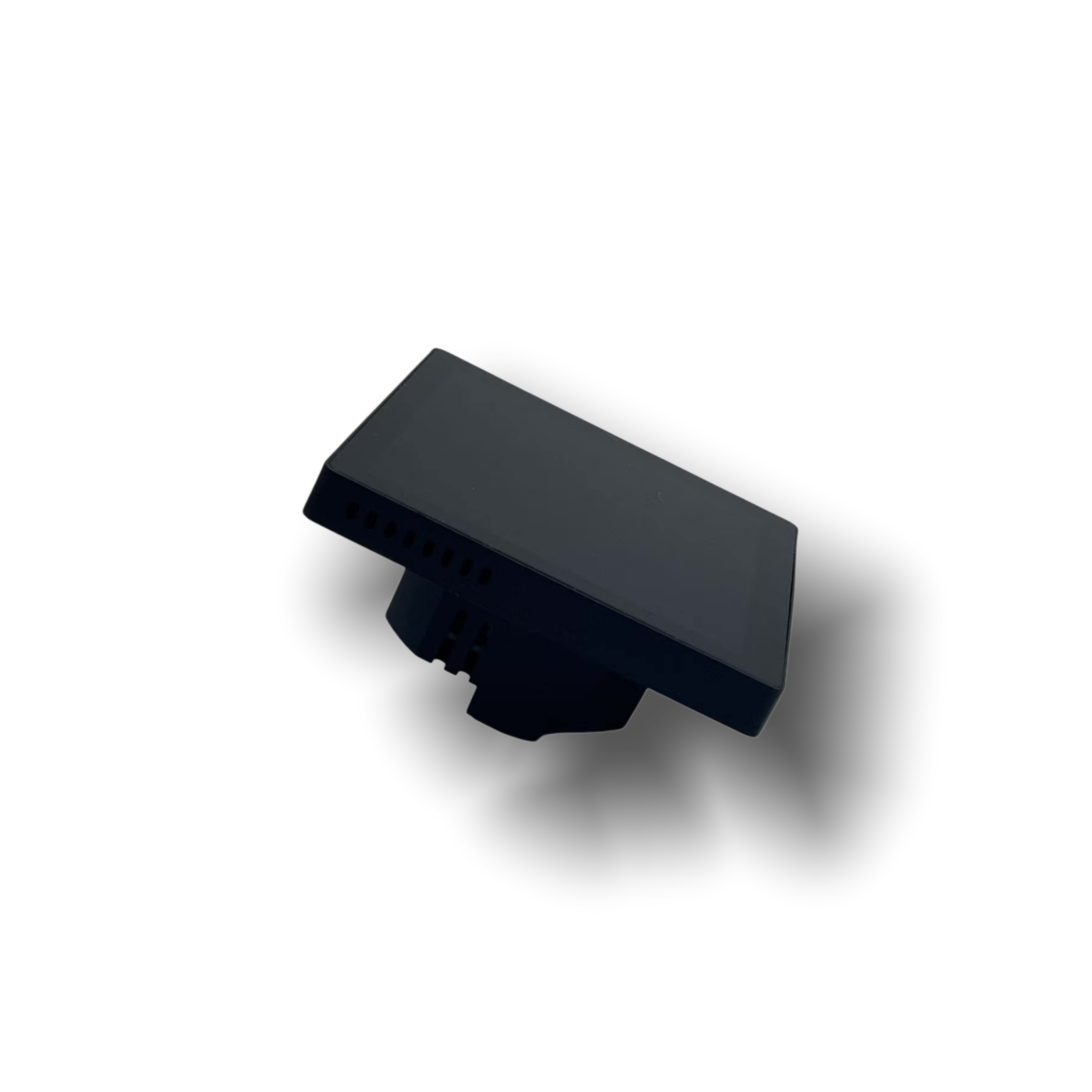

Smart Heat Room Thermostat
Shipping calculated at checkout.
In stock
Description
  • The XS-L1 touch screen series is a thermostat, used to control floor electric heating or water heating, or a water/gas boiler system, open or closed.
  • The thermostat is used in the commercial, industrial, hospital, hotel, hotels, civil buildings, and villas for heating control.
Smart Heat Room Thermostat
Scroll to section
Military-grade PC+ABS Protection | 260V Wide Voltage | 6-Language Smart Programming​
4KV EFT/3KV Surge Protection | IP20 Industrial Rating​
±0.5℃ Precision Control | 16A High Current | Weekly Energy-saving Algorithm
Military-grade PC+ABS Protection | 260V Wide Voltage | 6-Language Smart Programming​
4KV EFT/3KV Surge Protection | IP20 Industrial Rating​
±0.5℃ Precision Control | 16A High Current | Weekly Energy-saving Algorithm
Military-grade PC+ABS Protection | 260V Wide Voltage | 6-Language Smart Programming​
4KV EFT/3KV Surge Protection | IP20 Industrial Rating​
±0.5℃ Precision Control | 16A High Current | Weekly Energy-saving Algorithm
Military-grade PC+ABS Protection | 260V Wide Voltage | 6-Language Smart Programming​
4KV EFT/3KV Surge Protection | IP20 Industrial Rating​
±0.5℃ Precision Control | 16A High Current | Weekly Energy-saving Algorithm
Military-grade PC+ABS Protection | 260V Wide Voltage | 6-Language Smart Programming​
4KV EFT/3KV Surge Protection | IP20 Industrial Rating​
±0.5℃ Precision Control | 16A High Current | Weekly Energy-saving Algorithm
Military-grade PC+ABS Protection | 260V Wide Voltage | 6-Language Smart Programming​
4KV EFT/3KV Surge Protection | IP20 Industrial Rating​
±0.5℃ Precision Control | 16A High Current | Weekly Energy-saving Algorithm
Military-grade PC+ABS Protection | 260V Wide Voltage | 6-Language Smart Programming​
4KV EFT/3KV Surge Protection | IP20 Industrial Rating​
±0.5℃ Precision Control | 16A High Current | Weekly Energy-saving Algorithm
  • Simple UI design, full of technology.
  • Multi-language system-thermostat supports English, French, German, Italian,
    Spanish and Russian, adapting to user needs in multiple markets.
  • 5+1+1 Weekly programming-quickly and easily set the programming temperature,
    which is faster and more intuitive.
  • Three temperature displays - indoor temperature, set temperature and external
    sensor temperature, which is very different from other products on the market.
  • Full Touch screen-Click on the screen to quickly select the option you want.
  • High-quality screen-no fingerprints are left when touching the screen, keeping the
    product clean and tidy at all times.
  • High reliability - using advanced relay and component materials, can be connected to 260VAC power input, resist 4KV EFT, 3KV surge, protect the chip to avoid product burning, provide higher stability, and increase product life.
  • High safety: Comprehensive insulation provides a safer installation environment.
  • Friendly interaction——the product operation is simple and uncomplicated.
  • Perfect fit between 86*86mm square mounting box and 60*60mm round mounting box.
  • Power Supply: 95~240 VAC, 50~60Hz or 24V DC/AC, 50~60Hz
  • Set Temp. Range: 5-45°C; 41-113°F
  • Power Consumption: <1.5W
  • Sensor: NTC 10K
  • Timing Error: <1%
  • Current Load: 3A (Water & Gas boiler heating); 16A (Electric heating)
  • Accuracy: ±0.5°C
  • Ambient Temp.: 0-45°C; 32-113°F
  • Ambient Humidity: 5-95% RH (Non-condensing)
  • Room Temp. Range: 5-99°C; 41-210°F
  • Shell Material: PC+ABS (Fireproof)
  • Installation Box: 86 * 86mm Square (European); 60mm Round Box
  • Dimension: 86 * 86 * 46.8mm
  • Protection Class: IP20

Product comparison

Smart Heat Room Thermostat
Smart Heat Room Thermostat
Smart Heat Room Thermostat
Smart Heat Room Thermostat
Current product Current
Xcessmart

Smart Heat Room Thermostat

Options
Type Electrical Hearting
Protocol WiFi
In stock
Descriptions
  • The XS-L1 touch screen series is a thermostat, used to control floor electric heating or water heating, or a water/gas boiler system, open or closed.
  • The thermostat is used in the commercial, industrial, hospital, hotel, hotels, civil buildings, and villas for heating control.

FAQs

Supports 95-240V wide-range AC input and 24V DC/AC power supply, compatible with all major national grids (e.g. EU 230V / North America 120V).

Military-grade relays with 4KV EFT and 3KV surge protection, integrated overload protection chip.

Dual-band WiFi module (2.4GHz/5GHz) with EMC Directive 2014/30/EU certification, maintains command transmission even at -20dBm weak signal.

Certified with CE, RoHS, REACH, and IP20 protection rating compliant with IEC 60529.

  • Daily energy consumption reports
  • Temperature setpoint heatmaps
  • Abnormal energy alerts (Premium subscription required)
